Chemical
Injection Quills

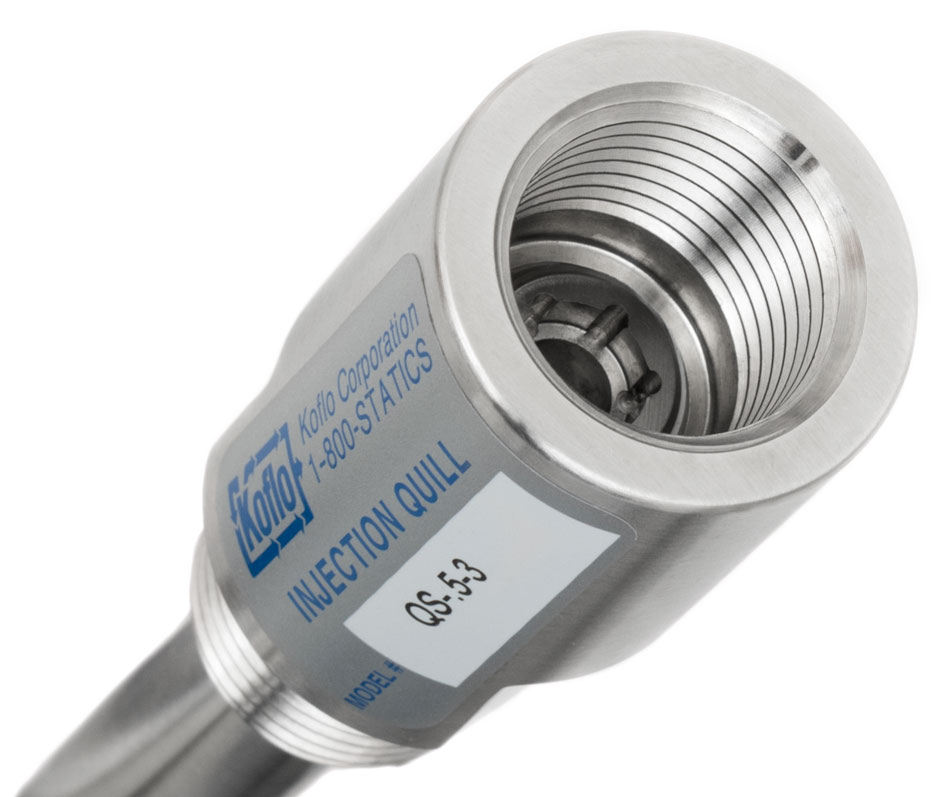

Koflo Chemical Injection Quills are used to introduce medium to highly corrosive chemicals into a pipeline without damage to the side port or pipe wall at the point of injection. Chemical injection quills ensure that chemicals are evenly dispersed into the center of the pipeline, which prevents channeling of the chemical down the pipe wall. The body and stinger are both constructed of chemical resistant plastics or alloys (PVC, Kynar, 316 SS, or Hastelloy C-276). Injection quills with 3” to 8” long stingers are available from stock. All injection quills come with female by male NPT connections for ease of installation.
Injection quills with Viton® and EPDM o-rings and units without integrated check valves are certified to NSF/ANSI 61 and NSF/ANSI 372.
All quill models are available and in-stock:
Request Pricing
Multiple In-Stock Stinger Lengths

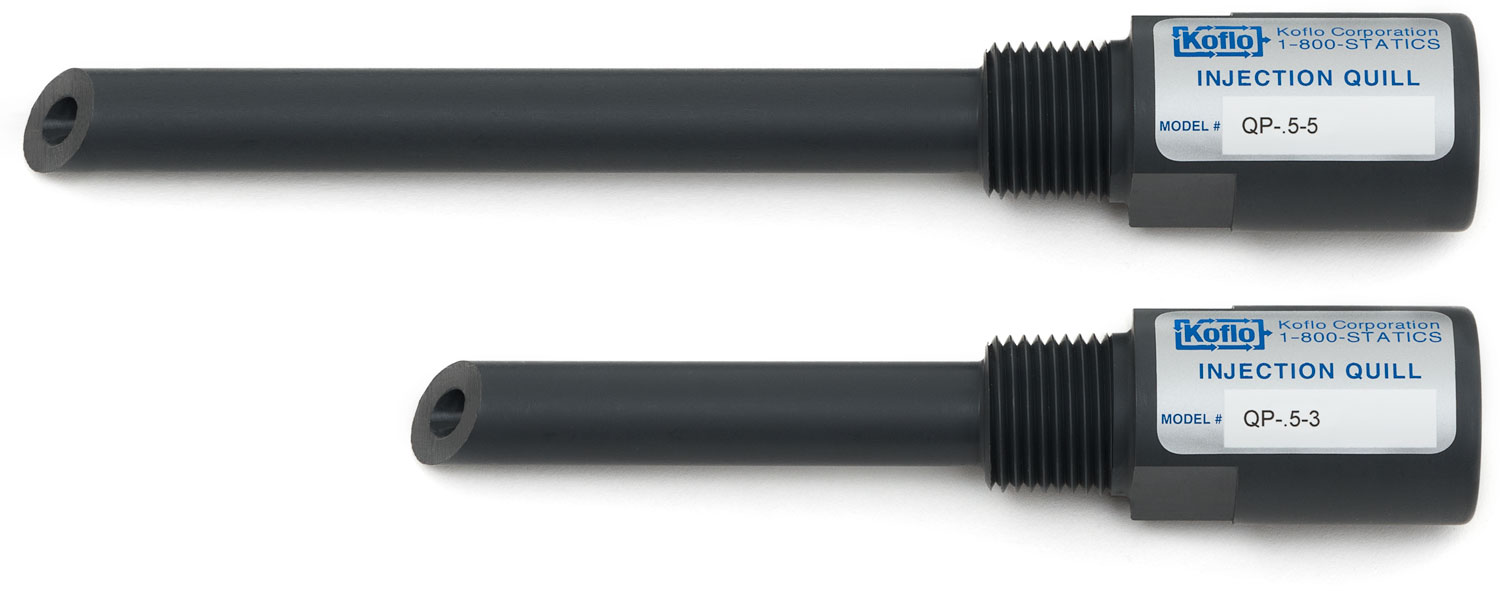

Koflo stocks all quill sizes and materials in multiple stinger lengths. Custom stinger lengths are available for all connection sizes and materials upon request. Refer to the Technical Specifications table (below) for a complete list of in-stock configurations.
Precision-Engineered Components

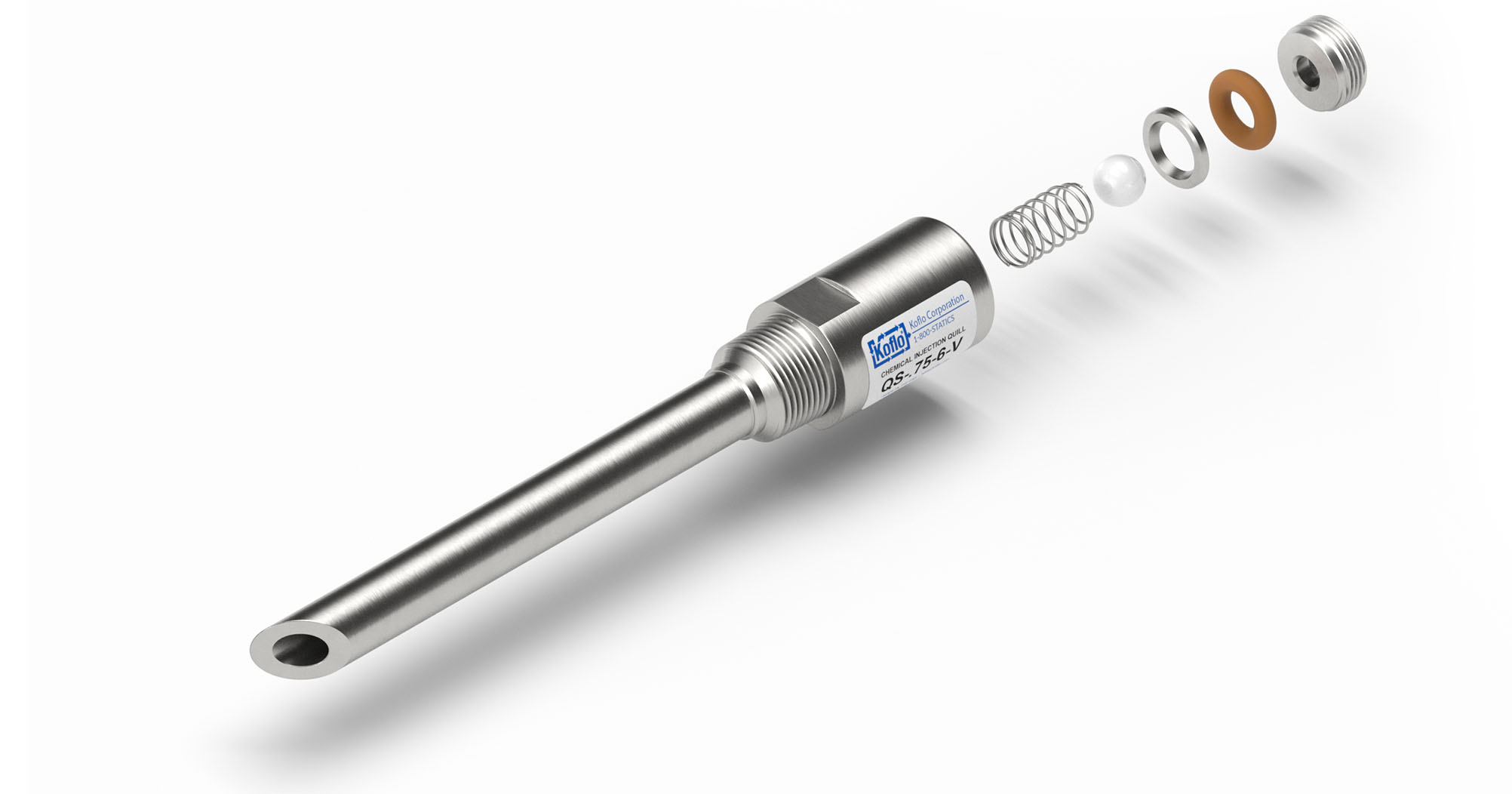

Machined housings ensure reliable and even chemical dispersion within the center of the pipeline. Each unit comes complete with an integral removable spring-loaded ball check to prevent flow of the injected chemical into the main flow when the system is shut down. Check valves are offered from stock with Viton® (FKM) o-ring seals, but can be configured with EPDM or Kalrez® 6375 o-rings for alternative chemical compatibility.

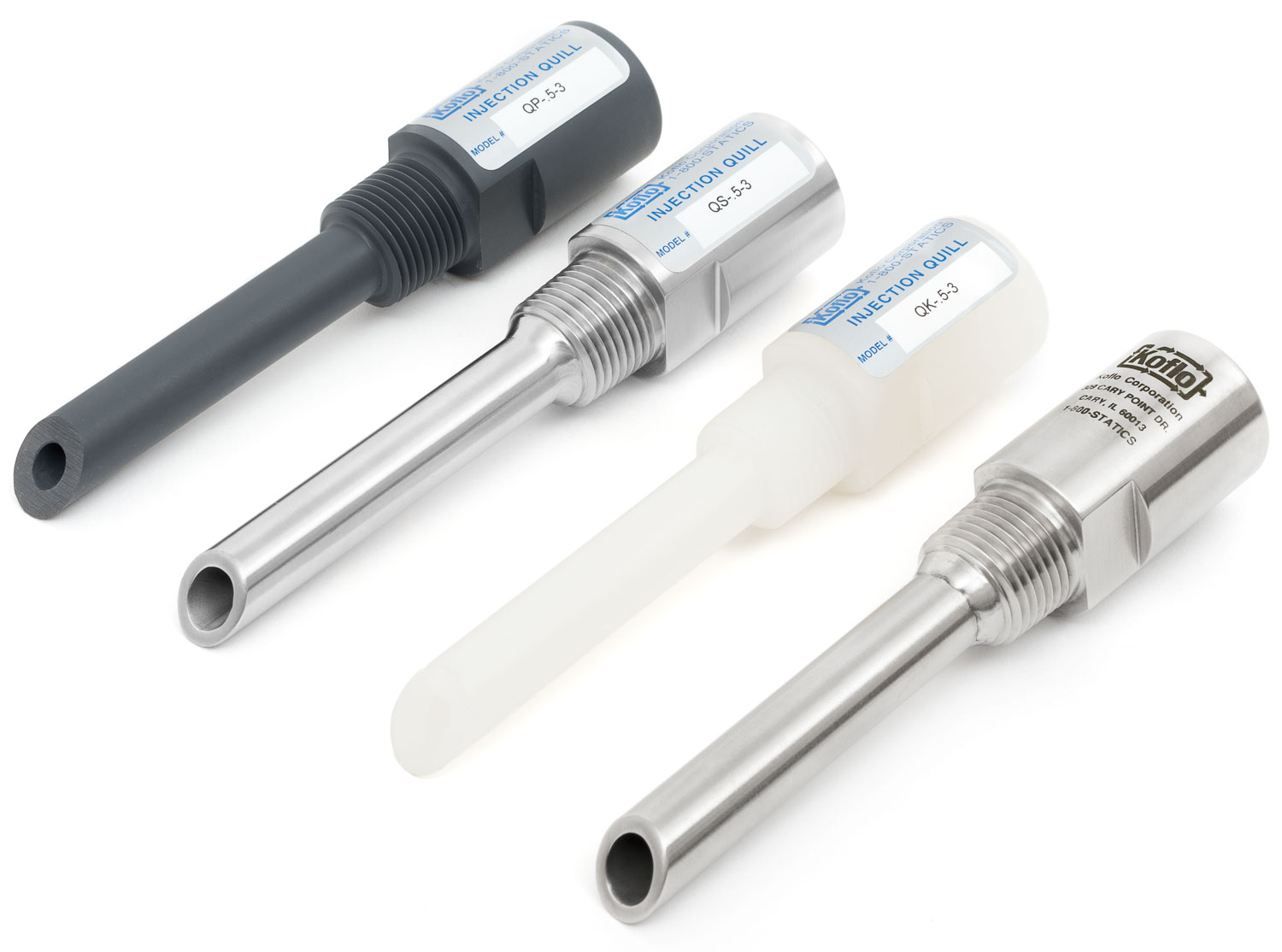

Available Material Options:
PVC
Moderate chemical resistance
316/L Stainless Steel
Moderate chemical resistance
PVDF Kynar®
Improved chemical and corrosion resistance
Hastelloy® C-276
Superior chemical, temperature, and corrosion resistance

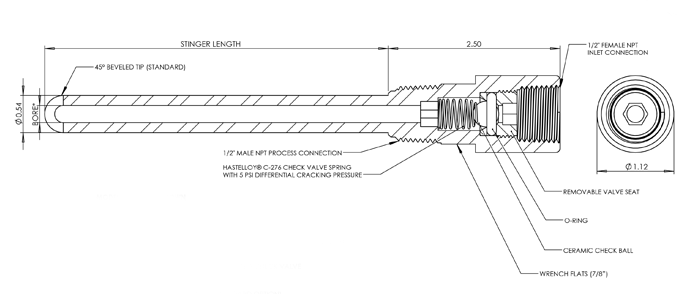

Technical Drawings PDF
Technical Specifications
| Check Valve O-Ring Material | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Viton In-Stock |
EPDM Ships in 2-3 Days |
Kalrez Ships in 2-3 Days |
No Check Valve Ships in 2-3 Days |
||||||
| Size | Material | Stinger Length | Max. Pressure (PSIG)2 |
Max. Temp (°F)2 |
Model Number | ||||
| 1/2" | PVC | 3" | 150 | 140 | QP-.5-3-V | QP-.5-3-E | QP-.5-3-K | QP-.5-3-NC | |
| 5" | QP-.5-5-V | QP-.5-5-E | QP-.5-5-K | QP-.5-5-NC | |||||
| PVDF | 3" | 150 | 280 | QK-.5-3-V | QK-.5-3-E | QK-.5-3-K | QK-.5-3-NC | ||
| 5" | QK-.5-5-V | QK-.5-5-E | QK-.5-5-K | QK-.5-5-NC | |||||
| 316/L Stainless | 3" | 3000 | 500 | QS-.5-3-V | QS-.5-3-E | QS-.5-3-K | QS-.5-3-NC | ||
| 5" | QS-.5-5-V | QS-.5-5-E | QS-.5-5-K | QS-.5-5-NC | |||||
| Hastelloy C-276 | 3" | 3000 | 500 | QH-.5-3-V | QH-.5-3-E | QH-.5-3-K | QH-.5-3-NC | ||
| 5" | QH-.5-5-V | QH-.5-5-E | QH-.5-5-K | QH-.5-5-NC | |||||
| 3/4" | PVC | 4" | 150 | 140 | QP-.75-4-V | QP-.75-4-E | QP-.75-4-K | QP-.75-4-NC | |
| 6" | QP-.75-6-V | QP-.75-6-E | QP-.75-6-K | QP-.75-6-NC | |||||
| PVDF | 4" | 150 | 280 | QK-.75-4-V | QK-.75-4-E | QK-.75-4-K | QK-.75-4-NC | ||
| 6" | QK-.75-6-V | QK-.75-6-E | QK-.75-6-K | QK-.75-6-NC | |||||
| 316/L Stainless | 4" | 3000 | 500 | QS-.75-4-V | QS-.75-4-E | QS-.75-4-K | QS-.75-4-NC | ||
| 6" | QS-.75-6-V | QS-.75-6-E | QS-.75-6-K | QS-.75-6-NC | |||||
| Hastelloy C-276 | 4" | 3000 | 500 | QH-.75-4-V | QH-.75-4-E | QH-.75-4-K | QH-.75-4-NC | ||
| 6" | QH-.75-6-V | QH-.75-6-E | QH-.75-6-K | QH-.75-6-NC | |||||
| 1" | PVC | 5" | 150 | 140 | QP-1.0-5-V | QP-1.0-5-E | QP-1.0-5-K | QP-1.0-5-NC | |
| 8" | QP-1.0-8-V | QP-1.0-8-E | QP-1.0-8-K | QP-1.0-8-NC | |||||
| PVDF | 5" | 150 | 280 | QK-1.0-5-V | QK-1.0-5-E | QK-1.0-5-K | QK-1.0-5-NC | ||
| 8" | QK-1.0-8-V | QK-1.0-8-E | QK-1.0-8-K | QK-1.0-8-NC | |||||
| 316/L Stainless | 5" | 3000 | 500 | QS-1.0-5-V | QS-1.0-5-E | QS-1.0-5-K | QS-1.0-5-NC | ||
| 8" | QS-1.0-8-V | QS-1.0-8-E | QS-1.0-8-K | QS-1.0-8-NC | |||||
| Hastelloy C-276 | 5" | 3000 | 500 | QH-1.0-5-V | QH-1.0-5-E | QH-1.0-5-K | QH-1.0-5-NC | ||
| 8" | QH-1.0-8-V | QH-1.0-8-E | QH-1.0-8-K | QH-1.0-8-NC | |||||
1Cracking pressure refers to the differential pressure between the injection and process lines required to open the intergrated check valve. The required cracking pressure for all quills is 5 psi.
2Maximum pressures are listed at ambient temperature. Maximum temperatures assume ambient pressure. For applications with elevated temperature and pressure, consult Koflo for de-rating factors.
