PFA Static Mixer
Stock Static Mixers

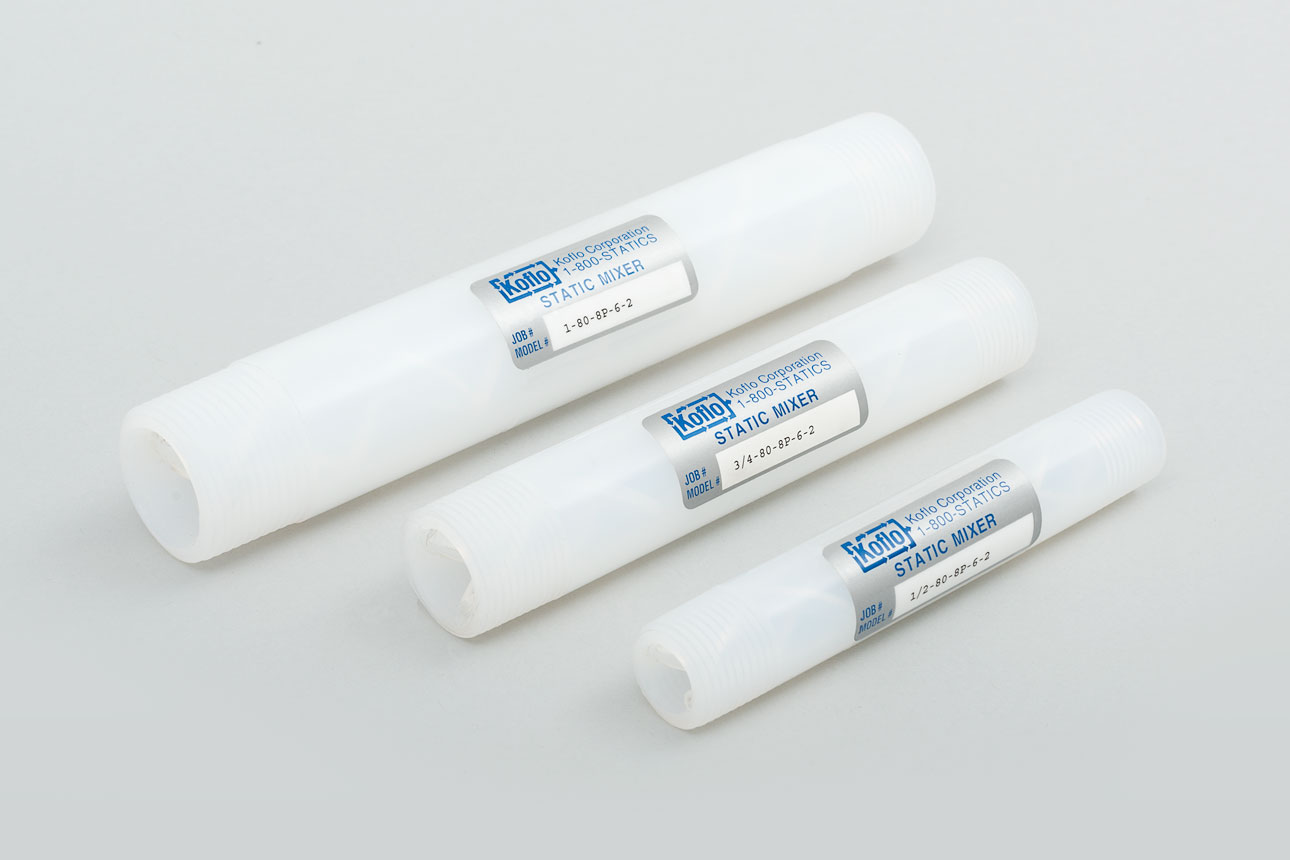

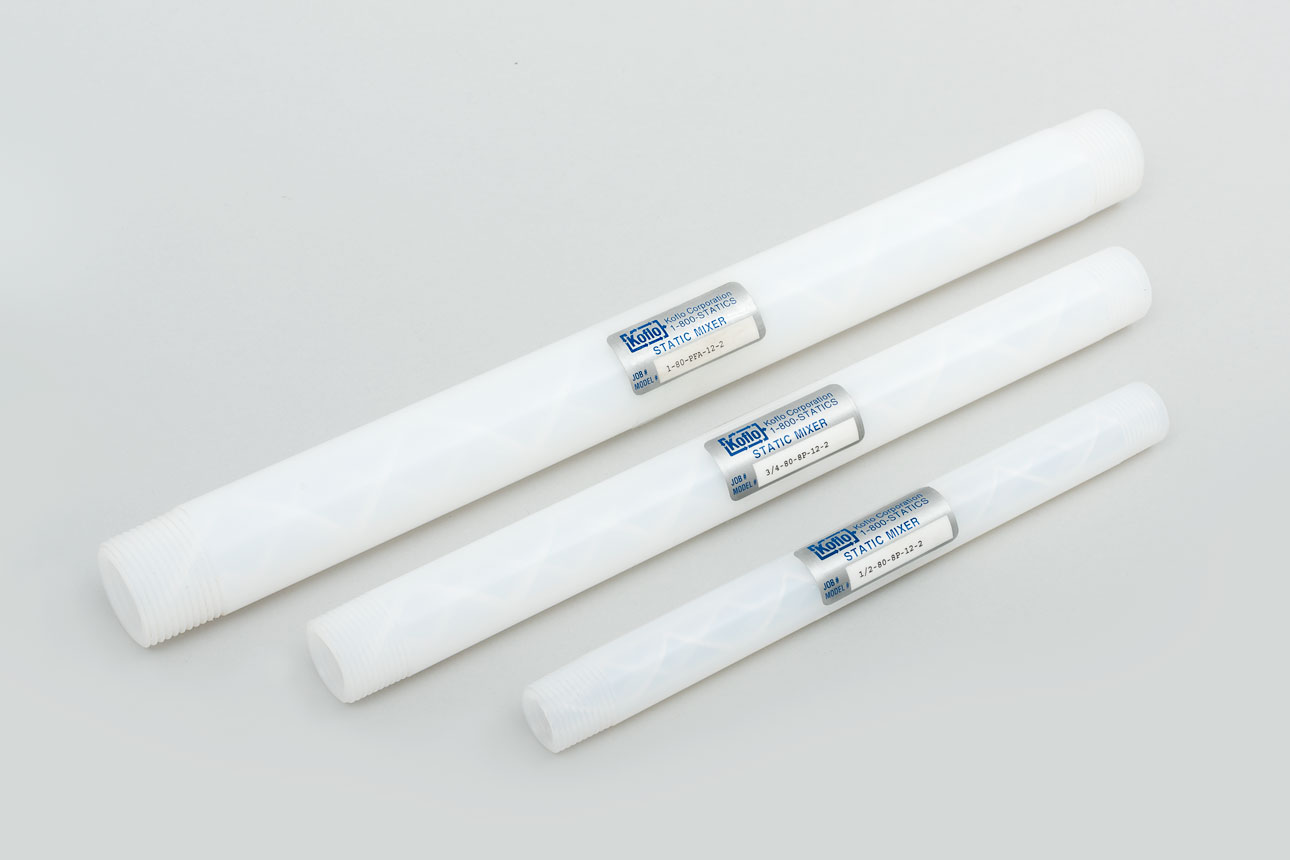

Koflo maintains a line of in-stock and ready-to-ship threaded PFA chemical resistant static mixers. In-stock threaded PFA chemical resistant static mixers are available from 1/2" to 1" diameter and are constructed of schedule 80 PFA. Complete with solid PFA mixing elements welded to the interior pipe wall, Koflo PFA chemical resistant static mixers are our most versatile, in-stock option for aggressive chemical mixing, higher temperature applications, or other applications where enhanced chemical resistance is a critical factor.
REQUEST A QUOTETypical Applications
- pH control
- Aggressive chemical mixing
- Thermal homogeneity
Static mixers are versatile mixing devices that can be used in a wide range of industries and applications beyond those listed above. For questions regarding your specific application, feel free to Contact Us.
Features
- Housing: Schedule 80 PFA
- Elements: Koflo Blade™ Style Solid PFA
- End Connections: Machined Male NPT (Threaded Ends)
- Solid PFA design offers superior corrosion resistance
- Lightweight and easy to install with male NPT threaded ends
Custom PFA/PTFE
Koflo offers custom-designed PFA/PTFE mixers with a number of available options to suit your application. Click below for custom options and information.

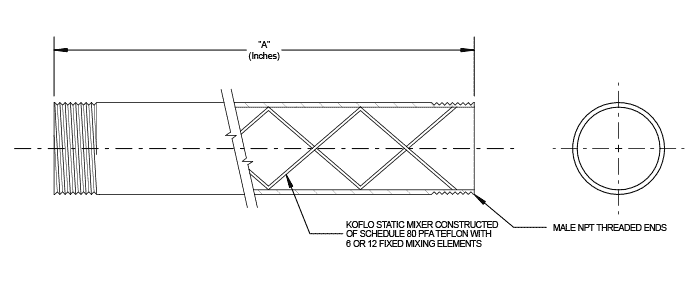

Technical Specifications
| Model Number | Pipe Dia. MNPT Ends |
Number of Elements |
Length | Weight | Max. Working Pressure Pressure (PSI) @ 70°F |
Max. Working Temperature (°F) |
|---|---|---|---|---|---|---|
| 1/2-80-8P-6-2 | 1/2" | 6 | 5" | 0.15 lb | 206 | 400 |
| 1/2-80-8P-12-2 | 1/2" | 12 | 9" | 0.28 lb | 206 | 400 |
| 3/4-80-8P-6-2 | 3/4" | 6 | 6" | 0.21 lb | 173 | 400 |
| 3/4-80-8P-12-2 | 3/4" | 12 | 12" | 0.40 lb | 173 | 400 |
| 1-80-8P-6-2 | 1" | 6 | 8" | 0.40 lb | 159 | 400 |
| 1-80-8P-12-2 | 1" | 12 | 15" | 0.75 lb | 159 | 400 |
