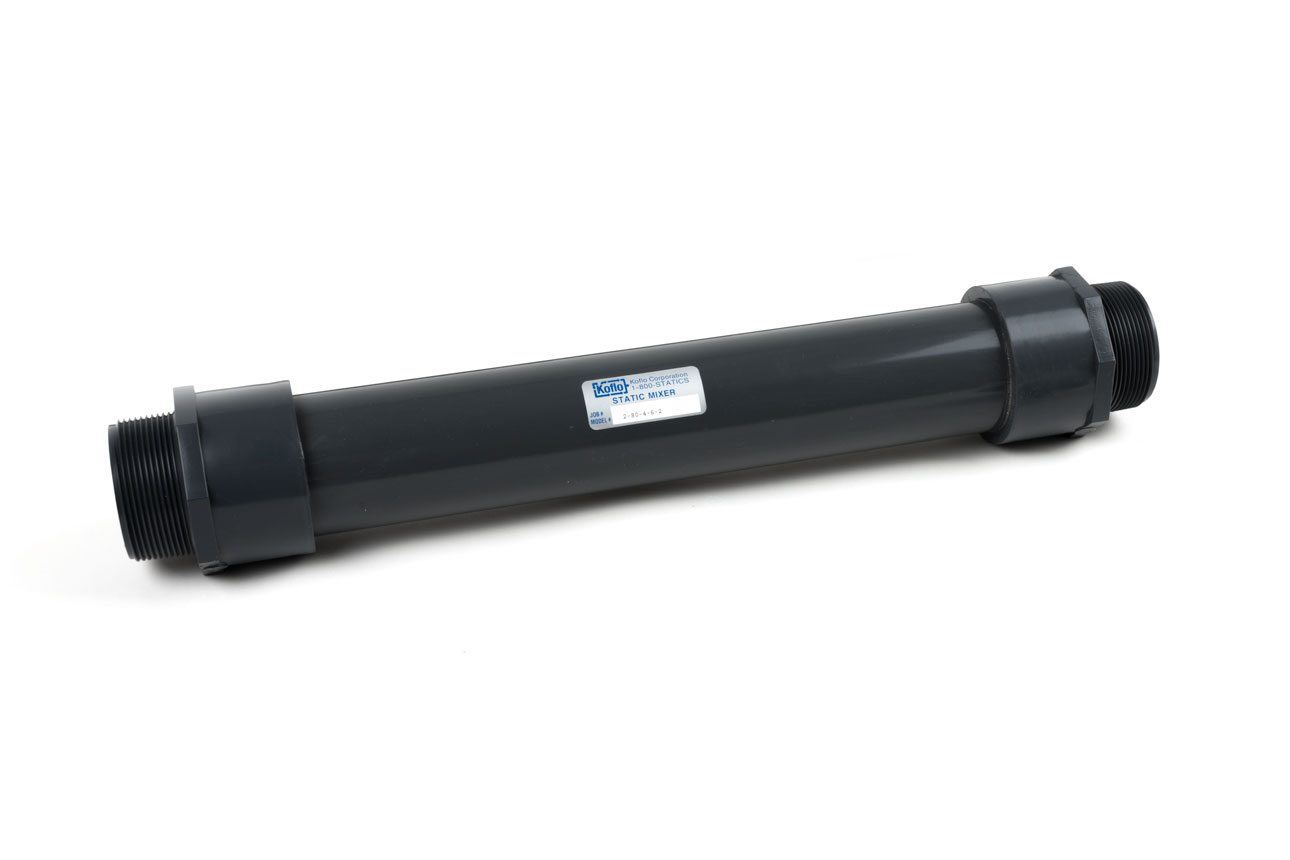

Gray Threaded PVC Static Mixer
Stock Static Mixers

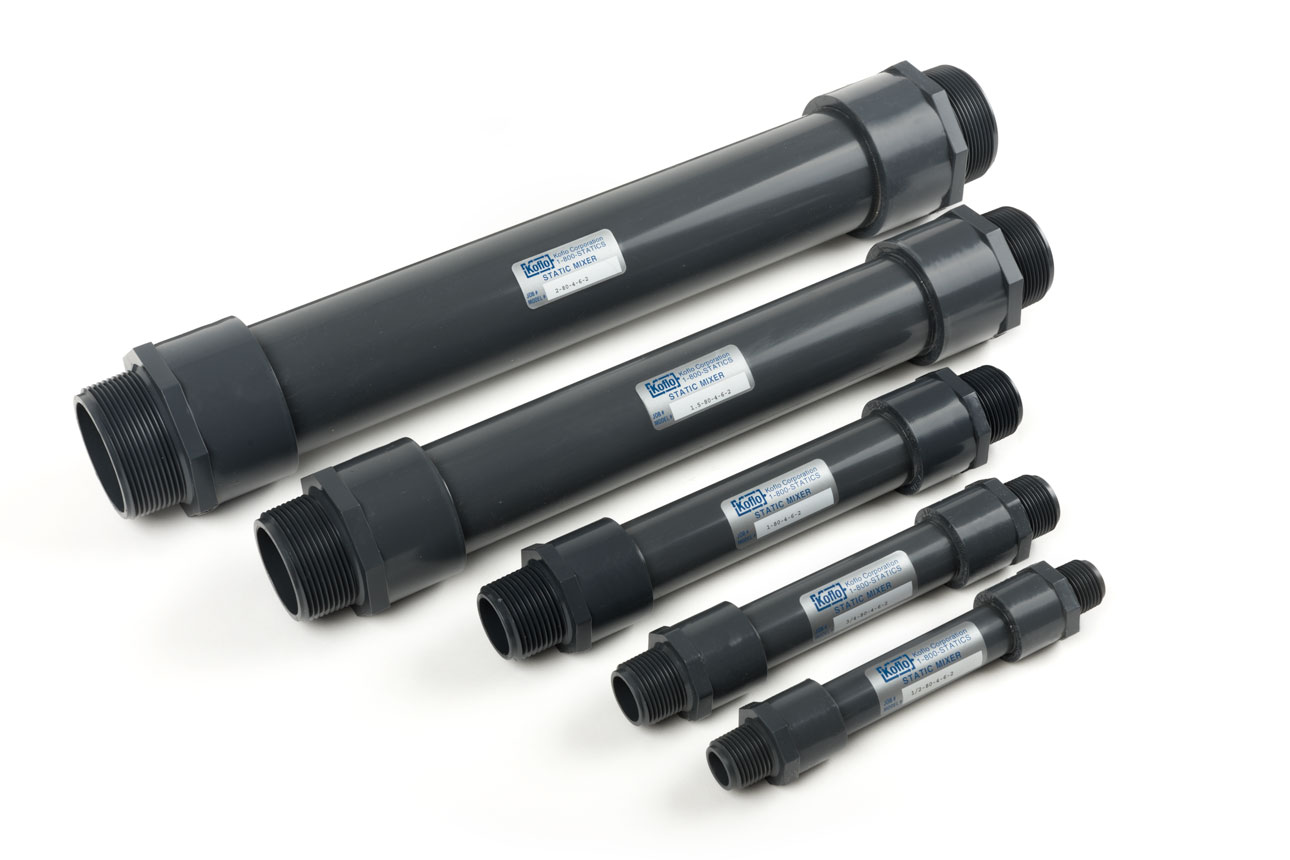

Koflo produces a complete line of in-stock industrial-grade schedule 80 threaded PVC mixers in sizes ranging from 1/2"-2" with both 6 and 12 mixing elements. All sizes are in stock and available for immediate delivery. Gray PVC static mixers are solvent cemented into the PVC housing to create a high strength bond and edge-seal the mixer to the wall to prevent liquid from "slip streaming" around the mixing elements.
All in-stock gray PVC static mixers are now certified to NSF 61.
REQUEST A QUOTETypical Applications
- Admixing of water treatment chemicals
- pH control
- Chlorination and ozonation
- Process control sampling
Static mixers are versatile devices for a wide range of industries and applications beyond those listed above. For questions regarding your specific application, feel free to Contact Us.
Features
- Housing: Schedule 80 PVC
- Elements: Koflo Blade™ Style PVC
- End Connections: Male NPT (Threaded Ends)
- PVC construction provides a durable and cost-effective mixing option
- Mixers are edge-sealed using a high-strength PVC solvent cement to ensure efficient mixing
- Third party certified to NSF / ANSI 61
Custom PVC
Koflo offers custom-designed PVC mixers with a number of available options to suit your application. Click below for Custom PVC options and information.

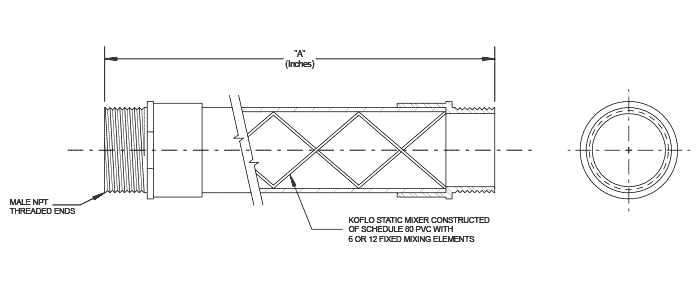

Technical Specifications
| Model Number | Pipe Dia. MNPT Ends |
Number of Elements |

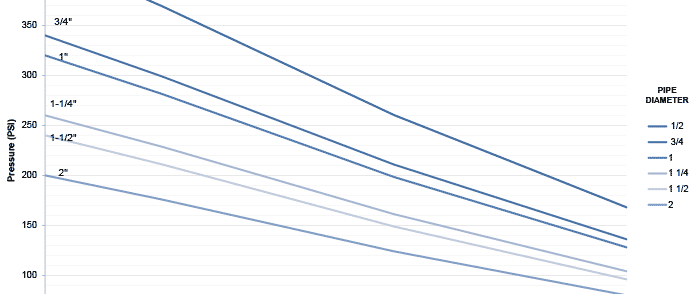

Length | Weight | Max. Working Pressure (PSI @ 75°F) |
Max. Working Temperature (°F) |
|---|---|---|---|---|---|---|
| 1/2-80-4-6-2 | 1/2" | 6 | 7" | 0.19 | 420 | 120 |
| 1/2-80-4-12-2 | 1/2" | 12 | 11" | 0.28 | 420 | 120 |
| 3/4-80-4-6-2 | 3/4" | 6 | 8" | 0.30 | 340 | 120 |
| 3/4-80-4-12-2 | 3/4" | 12 | 14" | 0.45 | 340 | 120 |
| 1-80-4-6-2 | 1" | 6 | 10" | 0.50 | 320 | 120 |
| 1-80-4-12-2 | 1" | 12 | 19" | 0.85 | 320 | 120 |
| 1.25-80-4-6-2 | 1.25" | 6 | 14" | 0.85 | 260 | 120 |
| 1.25-80-4-12-2 | 1.25" | 12 | 25" | 1.45 | 260 | 120 |
| 1.5-80-4-6-2 | 1.5" | 6 | 15" | 1.20 | 240 | 120 |
| 1.5-80-4-12-2 | 1.5" | 12 | 26" | 2.00 | 240 | 120 |
| 2-80-4-6-2 | 2" | 6 | 18" | 1.95 | 200 | 120 |
| 2-80-4-12-2 | 2" | 12 | 33" | 3.40 | 200 | 120 |
