Threaded Kynar® PVDF Static Mixers
Stock Static Mixers

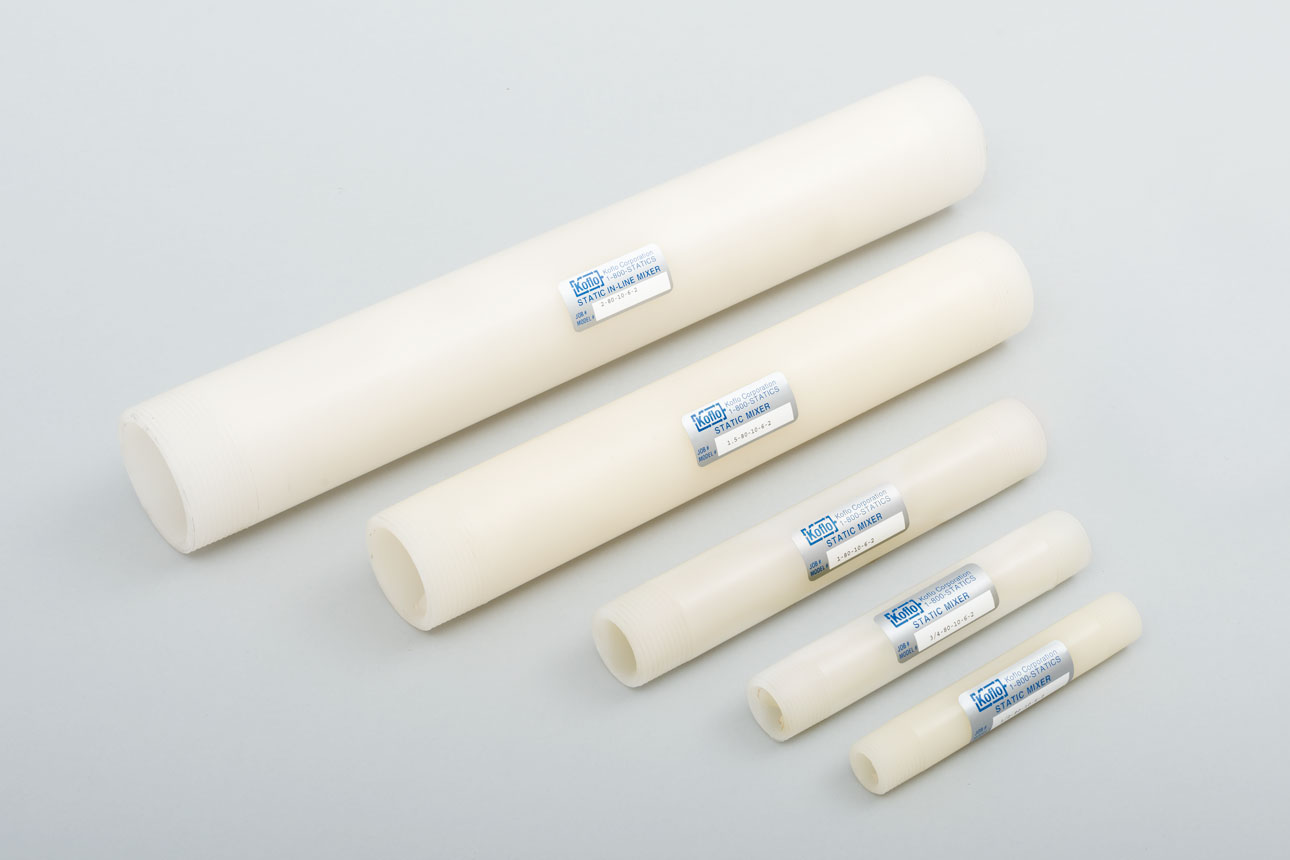

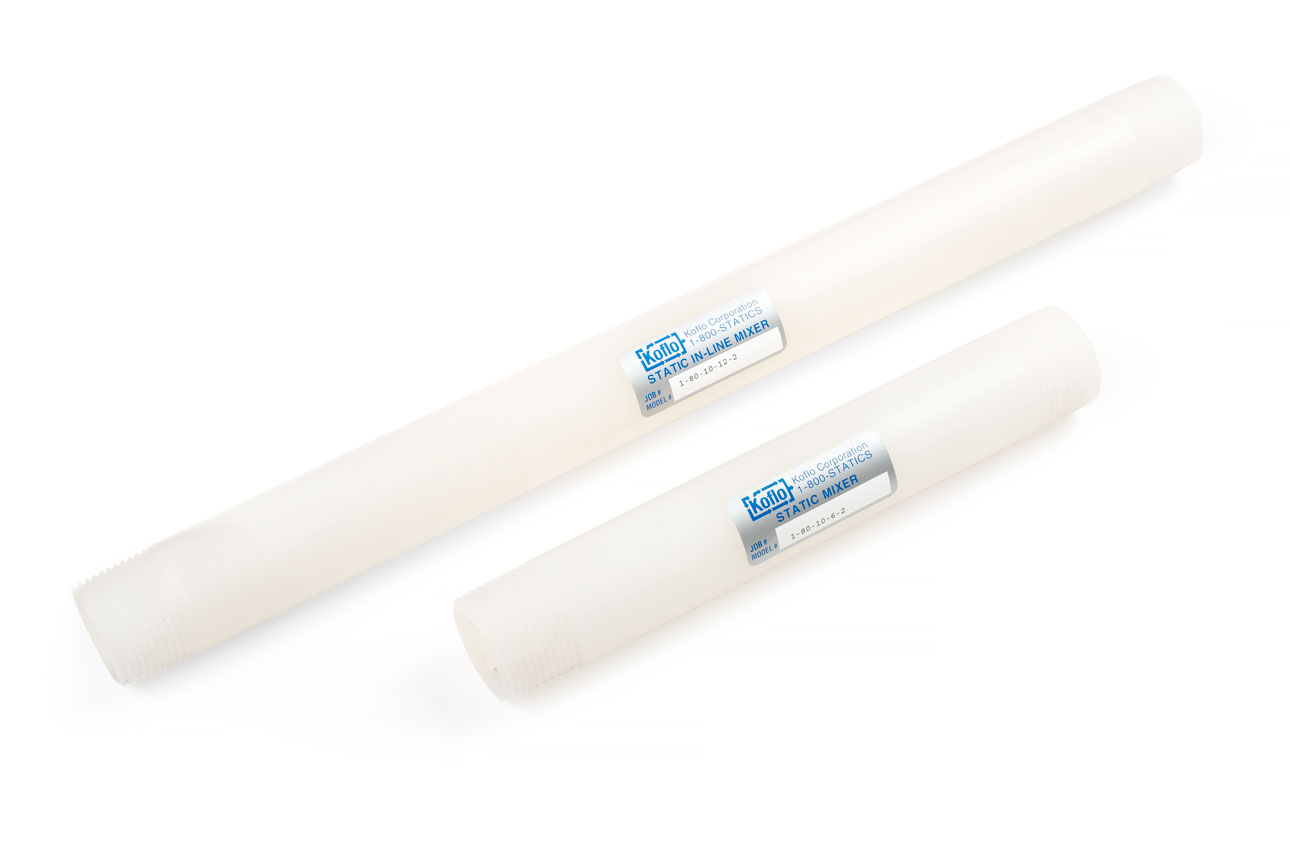

Threaded chemical mixers are available from 3/8" - 2" diameter and are constructed of schedule 80 unpigmented Kynar® PVDF . Complete with solid Kynar® mixing elements welded to the interior pipe wall, Koflo Kynar® PVDF static mixers offer a versatile, in-stock option for aggressive chemical mixing or other applications where enhanced chemical resistance and/or high temperature capability is a critical factor.
REQUEST A QUOTETypical Applications
- pH control
- Aggressive chemical mixing
- Thermal homogeneity
Static mixers are versatile mixing devices that can be used in a wide range of industries and applications beyond those listed above. For questions regarding your specific application, feel free to Contact Us.
Features

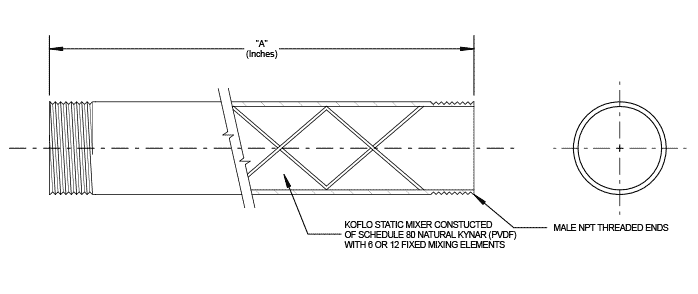

- Housing: Schedule 80 Kynar® PVDF
- Elements: Koflo Blade™ Style Solid Kynar® PVDF
- End Connections: Machined Male NPT (Threaded Ends)
*Note that 3/8" Kynar® PVDF mixers use Koflo's helical design mixing elements
- Solid Kynar® PVDF design offers superior corrosion resistance
- Lightweight and easy to install with male NPT threaded ends
More Kynar®
Koflo offers custom-designed Kynar® PVDF mixers with a number of available options to suit your application. Click below for Custom Kynar® PVDF options and more information.
Technical Specifications
| Model Number | Pipe Dia. MNPT Ends |
Number of Elements |
Length | Weight | Max. Working Pressure (PSI @ 75°F) |
Max. Working Temperature (°F) |
|---|---|---|---|---|---|---|
| 3/8-80-10-6H-2 | 3/8" | 6 | 4" | 0.10 lb | 400 | 240 |
| 3/8-80-10-12H-2 | 3/8" | 12 | 8" | 0.20 lb | 400 | 240 |
| 1/2-80-10-6-2 | 1/2" | 6 | 5" | 0.13 lb | 290 | 240 |
| 1/2-80-10-12-2 | 1/2" | 12 | 9" | 0.23 lb | 290 | 240 |
| 3/4-80-10-6-2 | 3/4" | 6 | 6" | 0.21 lb | 235 | 240 |
| 3/4-80-10-12-2 | 3/4" | 12 | 12" | 0.40 lb | 235 | 240 |
| 1-80-10-6-2 | 1" | 6 | 8" | 0.40 lb | 215 | 240 |
| 1-80-10-12-2 | 1" | 12 | 15" | 0.75 lb | 215 | 240 |
| 1.5-80-10-6-2 | 1.5" | 6 | 12" | 1.05 lb | 160 | 240 |
| 1.5-80-10-12-2 | 1.5" | 12 | 24" | 2.05 lb | 160 | 240 |
| 2-80-10-6-2 | 2" | 6 | 16" | 1.90 lb | 135 | 240 |
| 2-80-10-12-2 | 2" | 12 | 31" | 3.50 lb | 135 | 240 |
